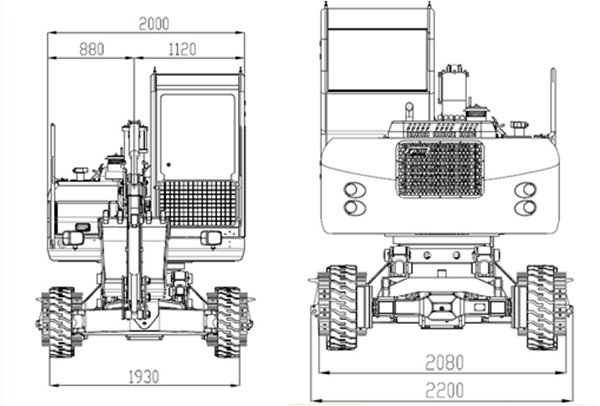

Main specification
Total weight 8000KGS
Overall dimension 6200X2100X2750 mm
Cab dimension 955x1645 mm
Tail turning radius 1788 mm
Ground clearance 252 mm
Wheel base 3500 mm
Tread 1930 mm
Engine model XINCHAI- A498BZG
Engine power 48 kw
Rated speed 2300r/min
Hydraulic system
Main pump SHIMADZU 23-23
Displacement 23.7L/rev
Pilot pump Tyre Gear pump
Displacement 4ml/r
Hydraulic Pressure 22 Mpa
Swing motor EATON brand
Travelling motor EATON brand
Main valve Imported from south korea SUNJIN brand
Hydraulic pipes Manuli brand
Flow rate 48x2=96 L/min

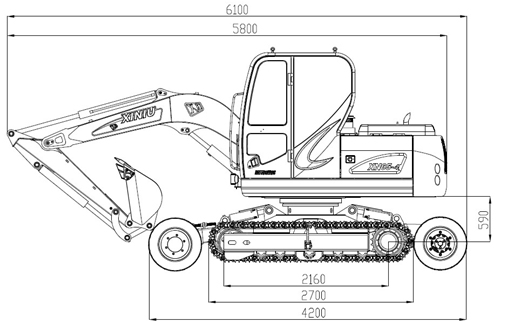

Working Range

Arm length 2000 mm
A: Max. digging range 6270 mm
B: Max. digging depth 3280 mm
C: Max. digging height 5400 mm
D: Max. dumping height 4600 mm
Capacity of bucket 0.2-0.28 m3
Transmission method Wheel (two wheel drive) / Crawler (Hydraulic type)
Capacity of hydraulic oil tank 110 L
Capacity of fuel tank 160 L

Dongying Kangdi Mechanical Equipment Co., Ltd. Is located in the beautiful and richly-endowed Yellow River Delta-Dong Ying City. It is a specialized enterprise integrating and foreign trade, and manufactures products of different field like komatsu parts, cummins parts, oilfield equipment, gas equipment, steel pipe. Being equipped with a first-class technical team and superior process ability. Our products are exported to many countries and regions like Southamerica, Northamerica, Middle East, etc...We are hopefully devoted to the sincere business negotiations with all domestic and foreign guests.
