Model

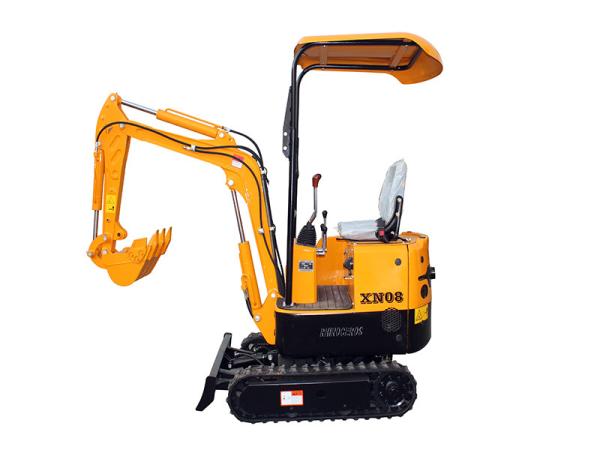

XN08

Operating Weight

800kg

Digging bucket capacity

0.025cbm

Bucket width

380mm

Engine

KOOP

Rated power

8.6 kw/3600r/min

Displacement

0.211 L

Bore stroke

70x55

Main pump

ZANEDA

Displacement

6.8ml/r

Swing motor

SJ-TECH

Traveling motor

KERSEN

Travel speed

1.5km/h

MAIN DEMENSIONS

Overall dimension( LxWxH)

2770x896x1490 mm

Total length of track

1230mm

Platform ground clearance

380 mm

Platform back turning radius

784 mm

Chassis width

896 mm

Track width

130 mm

Chassis ground clearance

132 mm

Track height

320 mm

OPERATING RANGE

Max. Digging depth

1650 mm

Max. Digging height

2610 mm

Max. Dumping height

1850 mm

Max. Digging radius on ground

2890 mm

Min. Rotation radius

1330 mm

Max. Upgrade height of bulldozer blade

345 mm

Max. Digging depth of bulldozer blade

255 mm

Dongying Kangdi Mechanical Equipment Co., Ltd. Is located in the beautiful and richly-endowed Yellow River Delta-Dong Ying City. It is a specialized enterprise integrating and foreign trade, and manufactures products of different field like komatsu parts, cummins parts, oilfield equipment, gas equipment, steel pipe. Being equipped with a first-class technical team and superior process ability. Our products are exported to many countries and regions like Southamerica, Northamerica, Middle East, etc...We are hopefully devoted to the sincere business negotiations with all domestic and foreign guests.
