oilfield XJ700 Workover Rig and related spare parts

for more,pls send saleskd2013@hotmail.com

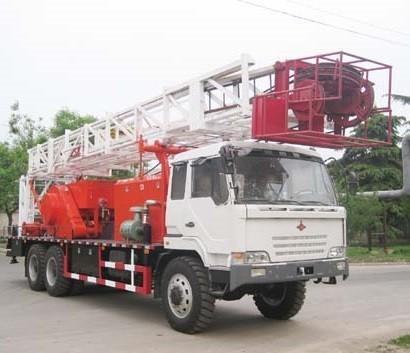

XJ700 workover rig is truck-mounted type workover equipment, it adopts home-made 6×6 special chassis, high speed diesel engine is equipped on deck, it adopts hydraulic mechanical transmission mode, the starting torque is strong, the transmission efficiency is high; It mainly consists of single drum drawworks, two-section telescopic mast, integrated box type crown, 3×4 traveling structure, hydraulic and pneumatic system etc. It is mainly used for middle and small workover job in oil and water well and the suitable tubing is 73mm(2.7/8″), the well depth is 3200m~3600m. ①　The chassis is designed and manufactured by our company, it is 6×6 special truck chassis, it has the feature of comfortable to operate and sit , and it has a good cross-country performance. ②　The power system adopts high speed diesel engine matching with hydraulic transmission box, the transmission is steady and flexible, the operation is simple and easy. ③　The 21m two-section mast or 23.5m two-section mast is optional, and simple drilling platform is optional ④　Drawworks system can adopt single drum and double drum type, the main drum is integral LEUBS groove, the rope is arranged orderly, it is equipped with a crown-o-matic device. Product model ZYT5301TXJ Workover Rig (XJ750) ZYT5320TXJ Workover Rig (XJ700) (2 7/8″)m Workover depth(2 7/8″upset tubing) 3600 3200 kN Nominal hook load 500 400 kN Max.hook load 750 675 m Mast height 21, 23.5 21,23.5 Dia. Of rope mm/Effective number of rope n φ26/6 φ22/6 Max. hoisting speed of hook m/s 1.4 1.5 mm Outside dimension when moving (including mast) 12510×2705×4250 13910×2705×4320 kg Curb weight 29570,31490 31490 Max. hoisting speed of hook Max. hoisting speed of hook m/s
